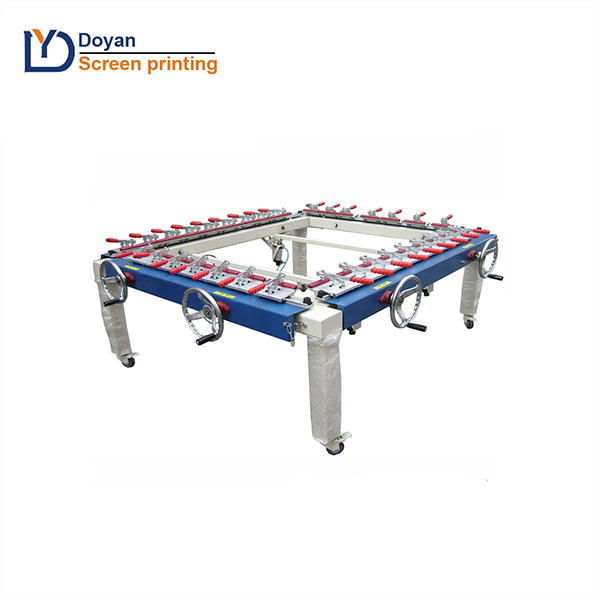

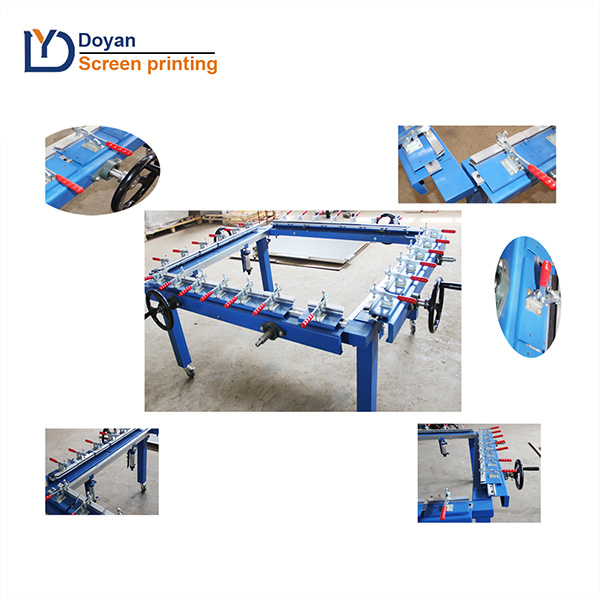

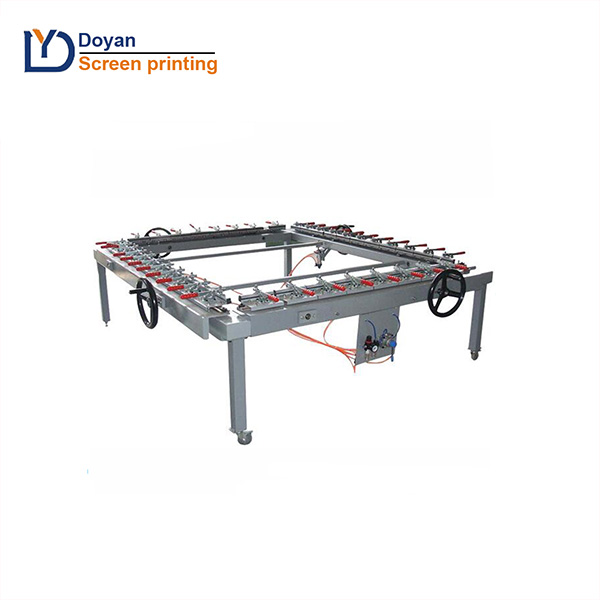

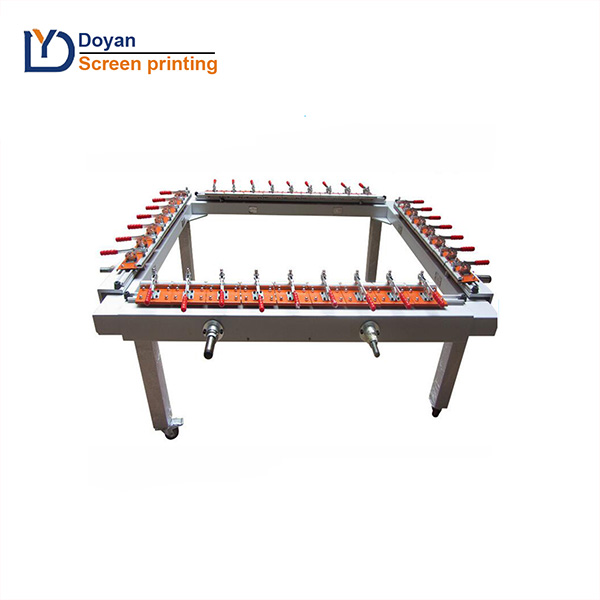

Single Clmap Pneumatic Stretching Machine

The stretcher is a special auxiliary machine for screen printing and plate making. It stretches the screen on the frame with a certain tension and is an important equipment for the plate carrier. It is suitable for advertising companies, silk screen equipment stores, printing factories, silk screen processing enterprises, etc. Users can customize specific specifications according to the area of use.

Scope of application

The stretcher is a special auxiliary machine for screen printing and plate making. It stretches the screen on the frame with a certain tension and is an important equipment for the plate carrier. It is suitable for advertising companies, silk screen equipment stores, printing factories, silk screen processing enterprises, etc. Users can customize specific specifications according to the area of use.

Machine configuration

1. It is made of strong hardness standard profile, the tensile force can reach 50N, the maximum tension is >30N/cm, the long-term pulling net beam is not deformed, and the tension is stable.

2. The four-side frame is designed to be movable. The mesh area can be freely adjusted according to the size of the screen, which effectively saves the mesh and is easy to operate.

3. specially designed single aluminum chuck length is 100-150mm, with rubber pad, which effectively saves mesh and is easy to operate.

4. Four synchronous top-network cylinders are arranged at the bottom to ensure the quality when the net is opened.

5. Rigorous structure, sturdy and durable, can stretch multiple small net frames at the same time, saving wire mesh. The size of the machine can be adjusted according to the size of the frame.
