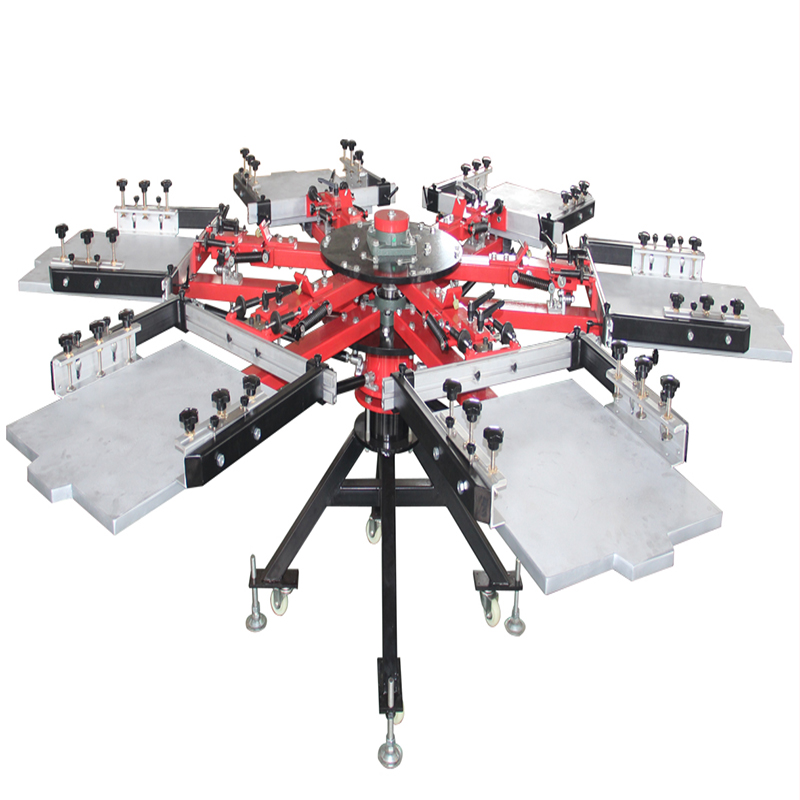

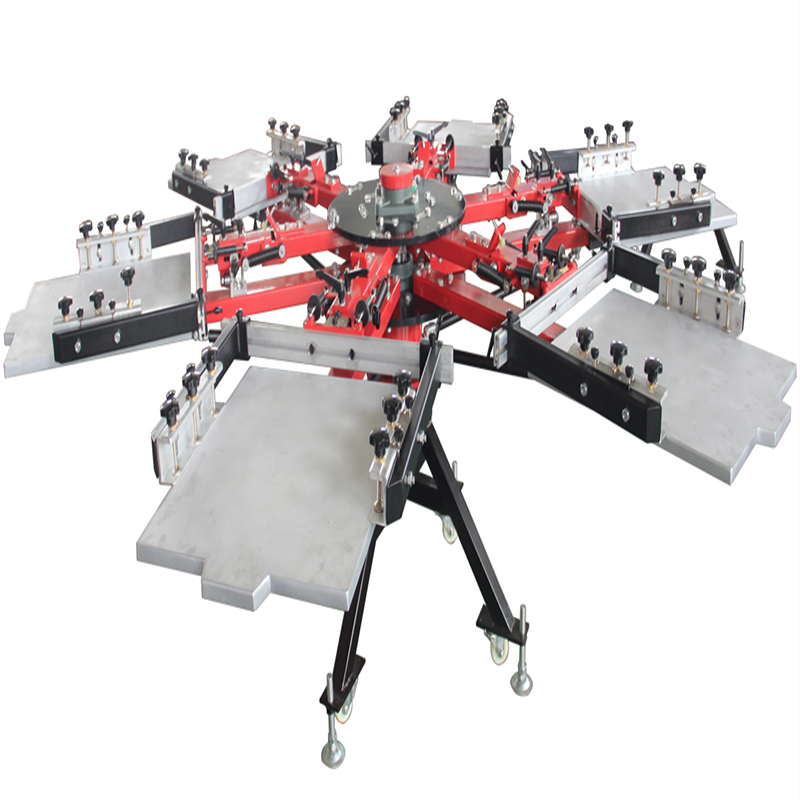

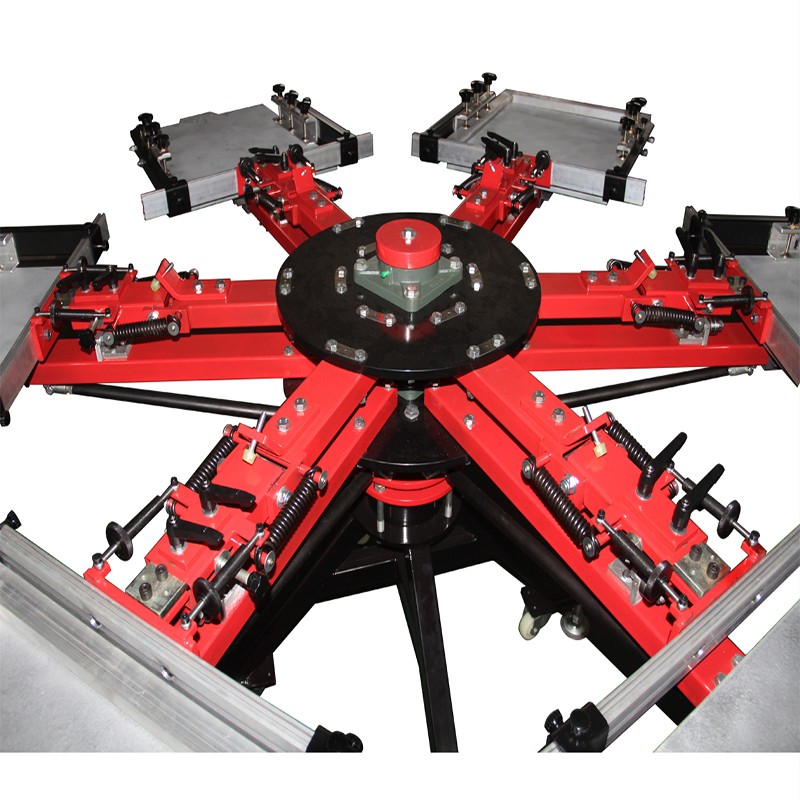

Duble Side Clamp Screen Printing Machine

The machine can print onto clothing (especially for T-shirt), woven fabric, metal, paper, copybook, plastic, circuit board, wood, glass, ceramic tile,leather and other plane printing substrates, which is especially suitable for small businesses and individual printing shop.
MESSAGE CONTAT US

ModelDYL4*4DYL6*6DYL8*8
Color4 COLOR 4 STTAIONS6 COLOR 6 STATIONS8 COLOR 8 STTAIONS
ClampsDOUBLEDOUBLEDOUBLE
Micro RegistrationWITHWITHWITH
Platen MaterialAluminiumAluminiumAluminium
Platen size500x600mm500x600mm500x600mm
Max Frame Size600x700mm600x700mm600x700mm
Diameter2.42m2.8m3.0m
Weight272kg358kg465kg
Dimension2800x2800x1100mm2800*2800*1000mm3000x3000x1100mm
Packing size1050x1050x1260mm1330x1330x1250mm1430x1430x1300mm
Features

1. Multi-functions for different objection

2. Stainless steel bolts increase using life

3. Heavy weight to keep the machine steady in printing time.

4. Double clamps system to keep the frame steady.

5. With micro-registration system on left-right/front-back angles on horizontal and vertical.


Double side clamp screen printing machine (3).jpg

Double side clamp screen printing machine (1).jpg

Double side clamp screen printing machine

Double side clamp screen printing machine
