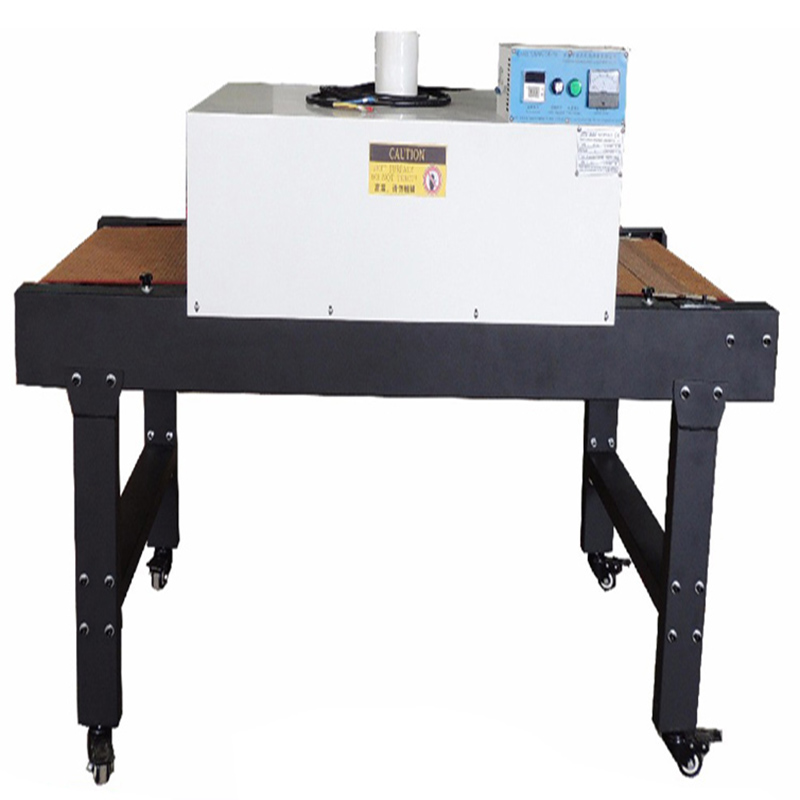

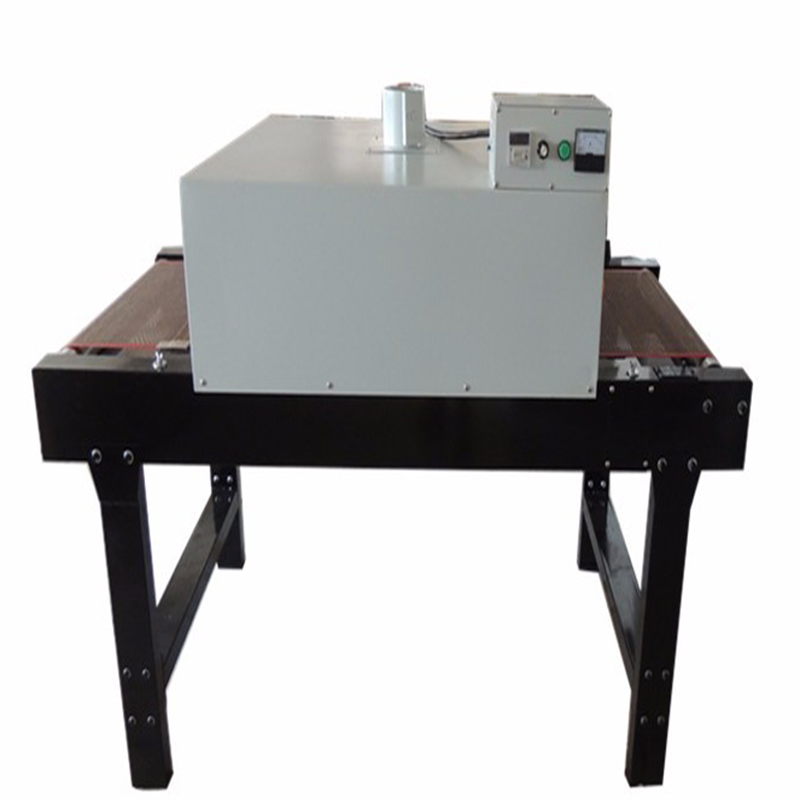

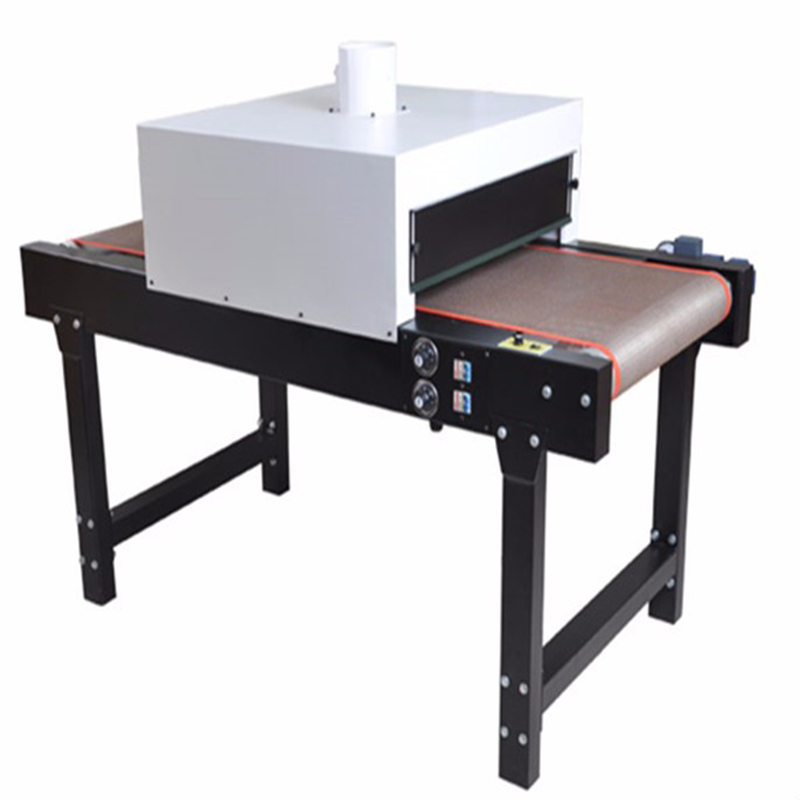

Automatic IR belt conveyor t shirt tunnel dryer for screen printing

This tunnel dryer is suitable for heating printing ink on clothes, even heat-set ink.

Nice designed structure to make sure the best drying effect.

Furnished with fire-resistant Teflon belt, efficient IR heating tube and constant heat circulation.

MESSAGE CONTAT US

Automatic IR belt conveyor t shirt tunnel dryer for screen printing (2).jpg

Model Number SDT10065 SDT15065 SDT300*65
CE dimension 180cm 250cm 400cm
Drying Area 100x65cm 150x65cm 300x65cm
IR heating tube Yes Yes Yes
Voltage 220V 220V 220V
Power 4.8KW 7.2KW 12KW
Temperature 0-250°C 0-250°C 0-250°C

1. All machine size be customized,we only showing some simple photos.

2. Temperature and working speed are simply and easily adjustable.

3. Digital speed meter enables operator to adjust working speed accurately.

4. The heating element is sillicon carbide tube,which has high efficitent light source to dry clothes exhaust fan elininates the scrape outside.

5. It is suite for drying various kinds of textile printing ink,such as plastional ink,silica gel printing ink,paste, and water based ink.
