Machine configuration
1. The machine is made of stainless steel and is corrosion resistant.
2. When the screen is developed, the light is flushed by the high-pressure flushing gun to achieve a completely clear effect.
3. Simple setting, simple operation, can provide fast and clear screen development.
4. Suitable for rinsing precision screens.
1. The machine is made of stainless steel and is corrosion resistant.
2. When the screen is developed, the light is flushed by the high-pressure flushing gun to achieve a completely clear effect.
3. Simple setting, simple operation, can provide fast and clear screen development.
4. Suitable for rinsing precision screens.
| Model number | CBT 90*120 | CBT 100*120 |
| Max frame size | 900×1200MM | 1000*1200 |
| Tubes | 40W×4PCE | 40W×4PCE |
| High pressure pamp | 1.5KW | 1.5KW |
| Voltage /HZ | 220V /50Hz | 220V /50Hz |
| Weight | 150KG | 150KG |
| Dimension | 1260*800*1800MM | 1350*1100*1800MM |

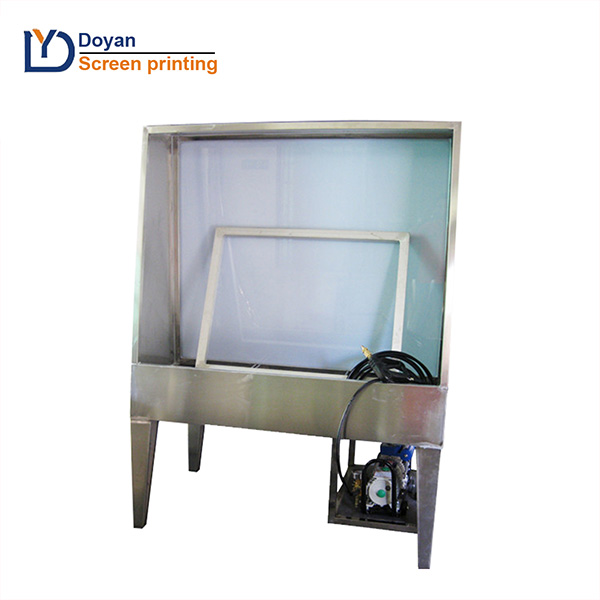

It is suitable for the rinsing of screen printing screens and the development of the screen after exposure. It is sprayed with a high-pressure water jet to achieve a completely clear effect. It can also be equipped with yellow light when used as an emulsion coating station. The background light source prevents exposure of the emulsion.
